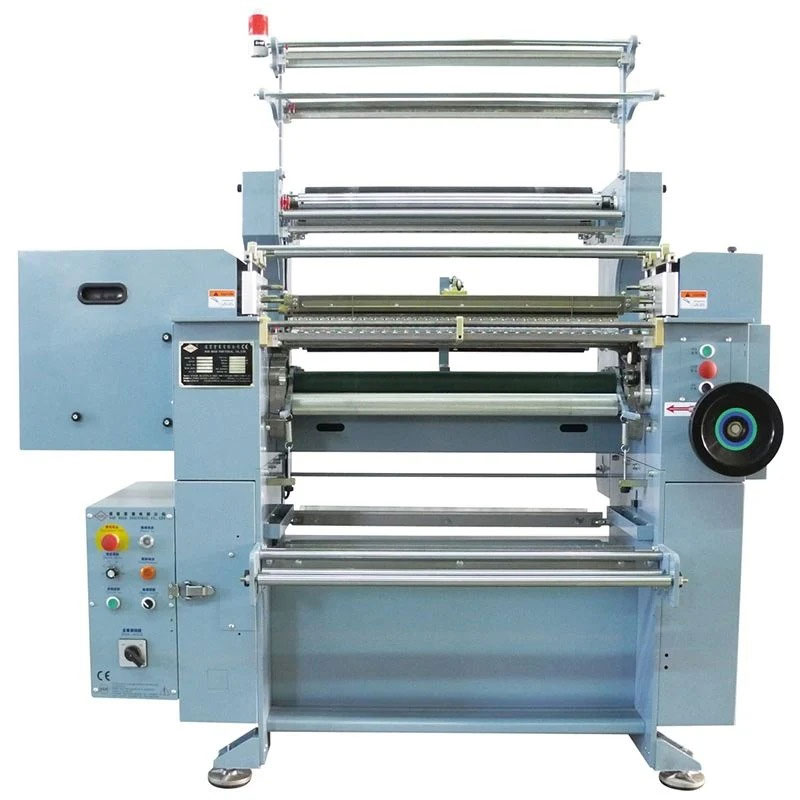

Crochet Machines
| Parameter | Specification |
|---|
| Working/Operating Width | e.g., 610 – 980 mm (24″–38″) |
| Gauge (Needles per inch) | 10, 12, 14, 15, 18, 20, 24 G (optional) |
| Weft Guide Bars | 3 / 8 / 11 bars (model dependent) |
| Stitch/Weft Density | 5–25 stitches/cm (application dependent) |
| Link Chain Sections | 12–120 sections (pattern control) |
| Maximum Speed | ~1,000–2,000 rpm |
| Motor Power | ~1.5 kW / 1.5 HP (typical) |
| Power Supply/Voltage | 220 V / 380 V (model dependent) |
Yarn Handling & Fabric Output
- Creel Capacity: e.g., 200–520 bobbins
- Fabric/Tape Width Output: Variable by gauge and bars (e.g., 4 mm – 300 mm)
- Yarn Compatibility: Multiple yarn types including elastic & non-elastic
Standard Features
- Auto stop on yarn breakage (safety & quality control)
- Variable frequency drive for speed control
- High-precision needle bed & robust bearings
- Easy-to-operate control interface
- Optional pattern control link/chains
Optional / Advanced Add-Ons
- Servo motor systems (smooth speed variation).
- Automatic lubrication systems.
- Expanded gauge choices for special fabrics.
- Larger creel systems for high-volume production.
Output & Productivity Estimates
Typical industrial machines run up to ~1500–2000 rpm producing narrow fabrics continuously. Output depends on gauge, yarn type and pattern complexity
